Manual Pulse Generator LJJ CNC Handwheel EN50082-2

Name: Manual Pulse Generator LJJ CNC Handwheel EN500822
Brand: Silvercnc
Price: 50 USD

China Manual Pulse Generator LJJ CNC Handwheel EN50082-2 factory

Brand Name : Silvercnc

Model Number : LJJ

Place of Origin : China

MOQ : 1 set

Price : $50-1000

Payment Terms : T/T, L/C

Supply Ability : 500pcs per month

Delivery Time : 5-7 work days

Packaging Details : cardboard

Certification : ISO9001

Color : Black

Quality : High Precision

size : 130x70x35(mm)

Rotary encoder unit : Photoelectric all metal pulse

Option switch : axis off x y z 4 5 6, ratio x1 x10 x100

Cable : Oil resistant helix, static 1.6m, tensile 5.5m

Condition : New

Service : Warm And Quick Response Service Provided By Professional Export Sales

Contact Now

Electronic handwheel for CNC machine Controller Manual Pulse Generator LJJ

High precision electronic hand wheel
1. Suitable for a variety of control systems such as: Fanuc,Siemens,Mitsubishi,Heidenhain,Fagor.
2. Axis and ratio options can be customized according to requirements.
3. Compact, light and RoHS compliant.
4. The rotary cover can be marked according to customers.
5. Waterproof and anti falling,oil pollution environment can also be protected.

Handwheel System selection

System selection
LJJ-12V-25PPR	signal(A B),voltage(5-12V),palus (25PPR), Suitable for Mitsubishi
LJJ-5V-100PPR	Sign(A B.A.B), voltage(5V),palus (100PPR), Suitable for Siemens, FANUC, FAG and heidenhan systems
LJJ-24V-100PPR	signal(A B),voltage(24V), Suitable for PLC

Handwheel specifications

size	130x70x35(mm)
indicator light	red
Immunity	EN50082-2 standard
Other specifications	Customizable logo
Rotary encoder unit	Photoelectric all metal pulse
Option switch	axis off x y z 4 5 6, ratio x1 x10 x100
Cable	Oil resistant helix, static 1.6m, tensile 5.5m
Warranty period	1 year

Wiring diagram

	Line color	signal	describe
Pulse generator	red	v+	According to the requirements of control system
	black	OV	According to the requirements of control system
	yellow	A
	white	B
	pink	A¯	Only when differential signal output is selected
	green	B¯	Only when differential signal output is selected
Magnification	Light green black	X1	Magnification switch
	Light blue black	X10
	Transparent black	X100
	Dark blue	COM	Common point
		OFF	Coordinate axis switch, no wiring
Axis	Trace	X axis
	orange	Y axis
	Light blue	Z axis
	Dark blue	4 axis
	grey	5 axis
	transparent	LED+	DC5V-24V
	Lavende	LED-	OV

product detail

Product Tags:

LJJ CNC Handwheel

Manual Pulse Generator CNC Handwheel

CNC Handwheel EN50082-2

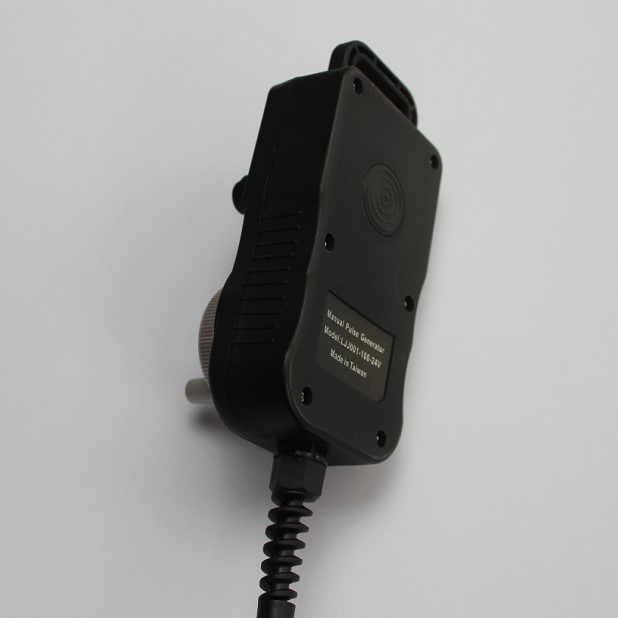

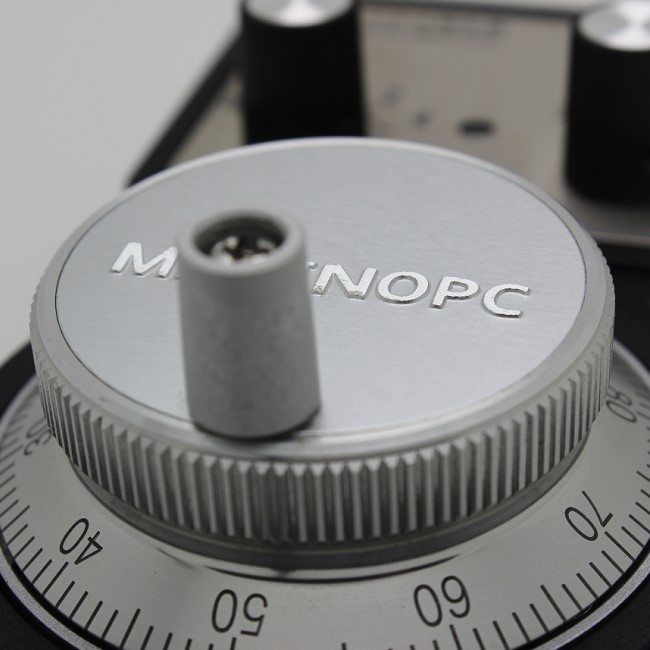

Manual Pulse Generator LJJ CNC Handwheel EN50082-2 Images
